PL60
Compact, professional laminator for passport data pages
A robust solution for passport lamination

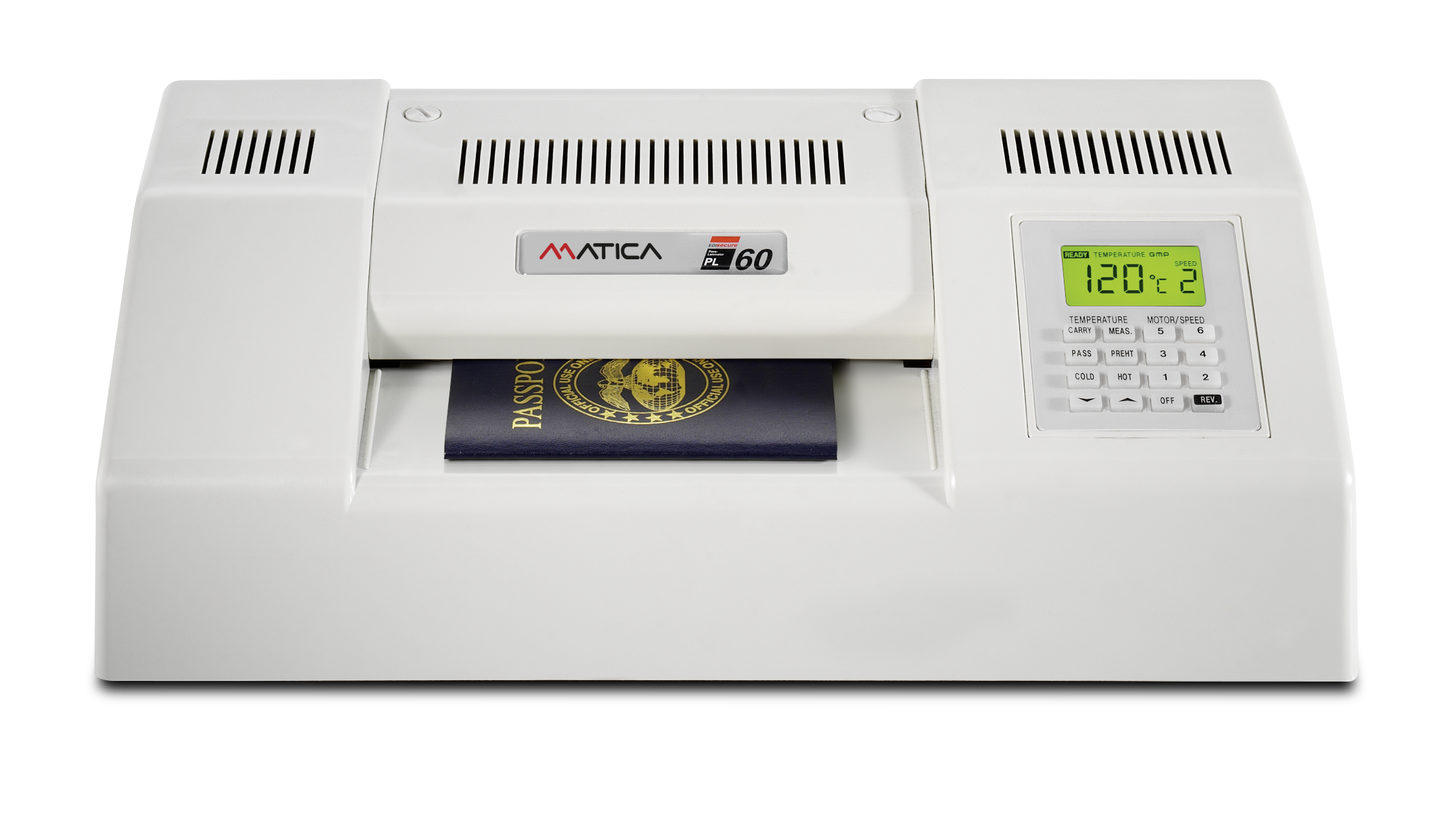

Matica’s PL60 desktop laminator is a robust, compact solution for the pouch lamination of passport data pages. It is user-friendly and easy to operate, with standard presets optimized for a perfect laminated finish. Both speed and temperature are also adjustable via an intuitive LCD interface.
The ICAO-compliant PL60 has been deployed in a number of passport issuance installations around the world. It is typically used for distributed passport issuance from a local office or for emergency passport issuance from an embassy environment.
Key strengths
- Compact desktop design
- ICAO 9303 compliant
- Reliable and easy-to-use
- Helps to extend the life of issued passports
- Visual LCD display status indicator
Ideal for
- ePassport issuance
- Travel visas
- Emergency passport issuance
Options
- Can be teamed with Matica’s P402i/ P4000 passport printer
Product features
Technical specifications
Lamination
Lamination width (max.)
175mm
Lamination thickness
1.7mm to 3.5mm
Laminating speed
0 to 770mm/min
System
Driving motor
DC geared
Control system
Steady voltage circuit
DC control
Heating system
Infrared
Platform
Printer dimensions (H x W x D)
460mm x 270mm x 110mm
18.1” x 10.6” x 4.3”
Weight
10 kg
22.0 lbs
Options
Power supply
230V / 50Hz
Power consumption
500W
Operating temperature
0-160°C
